TD5 Fuel Filter Housing Problems: Essential Tips and Fixes
The TD5 fuel filter housing problems in Land Rover vehicles include fuel leaks due to worn seals or cracks, difficulties starting the engine from clogged filters or faulty housing, and fuel contamination risking engine damage.
Damage or cracks to the housing may occur from corrosion or impact, leading to leaks or fuel system disruption. Faulty seals or components can allow air intrusion, impacting engine performance and idling. Pressure regulation problems and fuel system blockages may also arise.
Is your Land Rover acting sluggish? Having trouble starting? The culprit might be a common issue: TD5 Fuel Filter Housing problems. This vital component can cause a range of headaches, but fear not!
In this blog series, we’ll delve into diagnosing the problem, exploring repair options, and getting your TD5 running smoothly again.

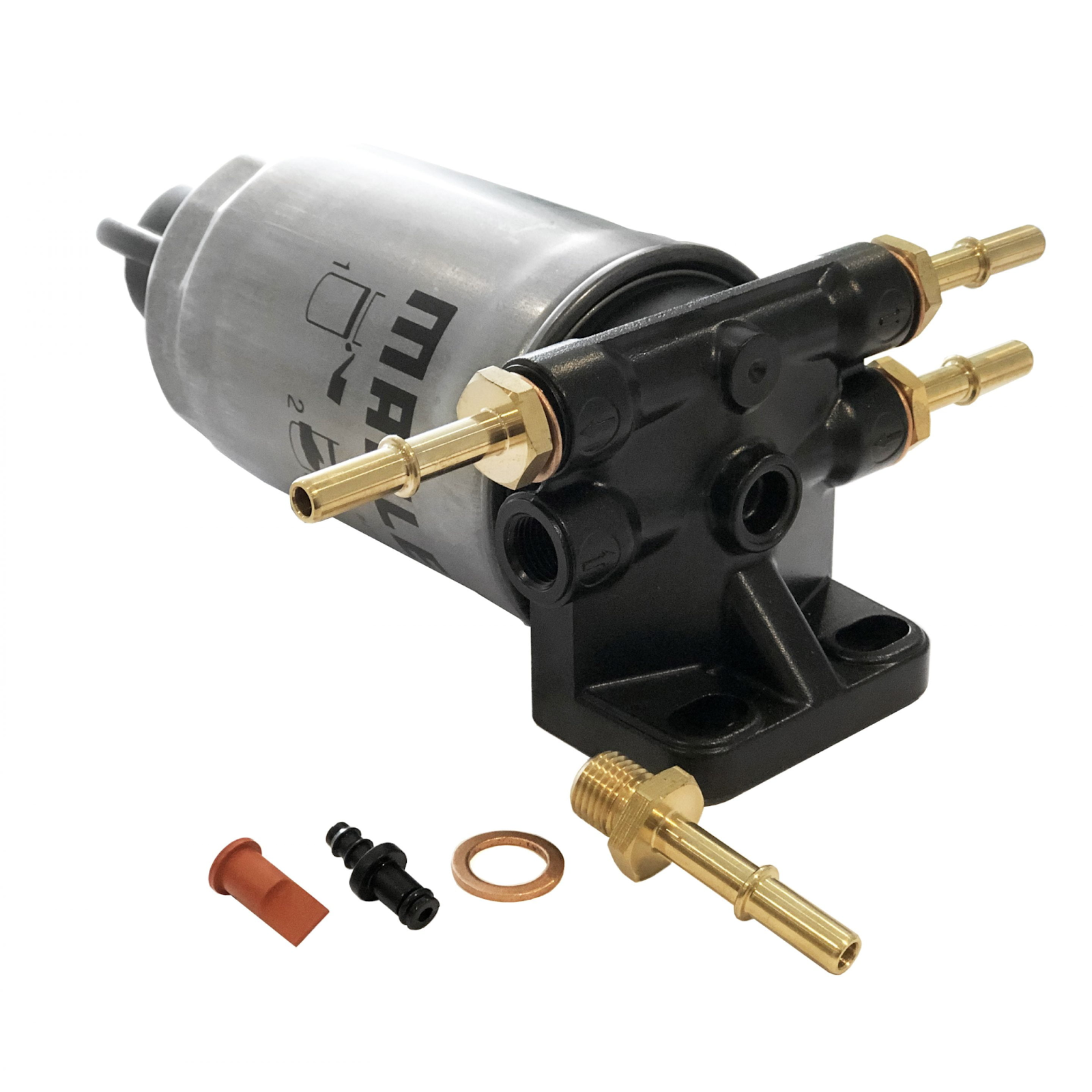

Overview Of The Td5 Fuel Filter Housing
The TD5 fuel filter housing is a critical component of the Land Rover TD5 engine’s fuel system. Responsible for housing the fuel filter and maintaining proper fuel pressure, a malfunctioning housing can lead to a number of problems with your vehicle’s performance.
The housing itself is made of aluminum and contains the following key parts:
- Fuel Filter: Removes contaminants from the fuel before it reaches the engine’s injectors.
- Non-Return Valve: Helps maintain fuel pressure within the system by preventing fuel from flowing back to the tank.
- Water Sensor (optional): Detects the presence of water in the fuel, which can damage the engine.
- Air Bleed Valve: Allows for purging air from the fuel system during servicing.
Importance Of The Fuel Filter Housing In Maintaining Engine Performance
The TD5 fuel filter housing acts as a gatekeeper for clean fuel and proper pressure. A faulty housing can lead to clogged filters, air leaks, and lost pressure – all causing poor engine performance like starting issues, rough idling, and power loss. Keeping it in top shape ensures smooth operation and protects your engine.
Common Td5 Fuel Filter Housing Problems
There are a number of problems that can occur with the TD5 fuel filter housing. Here are some of the most common:
- Faulty Non-Return Valve
The non-return valve can wear out over time, which can lead to a loss of fuel pressure. This can cause the engine to start poorly, run rough, and lack power.
- Leaking Housing
The housing can develop leaks, which can allow air into the fuel system. This can cause similar problems to a faulty non-return valve.
- Blocked Filter
The fuel filter can become blocked with contaminants, which can restrict fuel flow to the engine. This can cause the engine to lose power and run erratically.
- TD5 Housing Blockage
It can lead to rough idling, power loss, and starting troubles. Replace the filter or clean the housing to get your Land Rover back on track!
Symptoms Of a Clogged Fuel Filter
Here are the telltale signs of a clogged fuel filter:
1. Reduced Engine Performance
A clogged filter restricts fuel flow, which means your engine isn’t getting the fuel it needs to run smoothly. This can manifest as a lack of power, especially when accelerating or climbing hills.
2. Engine Stalling
If the fuel filter is clogged enough, it can completely starve the engine of fuel, causing it to stall. This can be especially dangerous if it happens while you’re driving.
3. Rough Idling
A partially clogged filter can cause the engine to idle rough or erratically. This is because the engine isn’t getting a consistent flow of fuel.
4. Increased Fuel Consumption
A clogged filter can also cause your car to use more fuel. This is because the engine has to work harder to overcome the restriction in the fuel line.
5. Increased Fuel Consumption
A clogged filter can also cause your car to use more fuel. This is because the engine has to work harder to overcome the restriction in the fuel line.

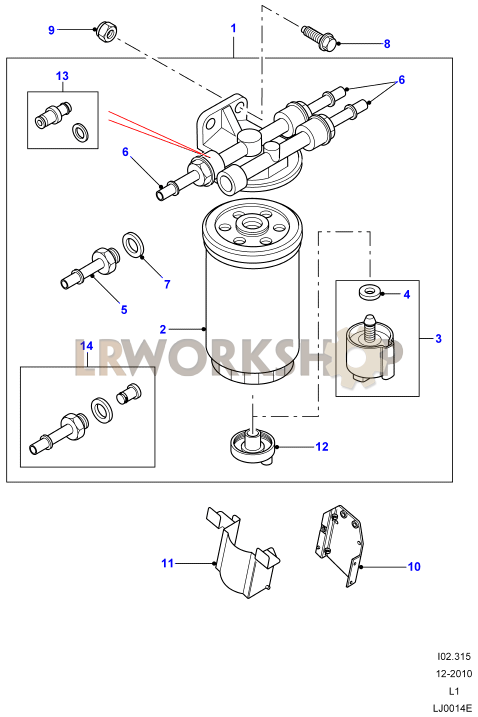

Td5 Fuel Filter Housing Diagram
Read More About Fuel Blending Process Emissions, Mixing Methods Benefits & Drawbacks
Td5 Fuel Filter Location
The TD5 fuel filter is located in the rear wheel arch, typically on the driver’s side. It’s tucked away behind the wheel well liner for protection, but still relatively accessible for replacement.
Where Is The Fuel Filter On A Defender Td5?
On a Defender TD5, the fuel filter housing is located in the rear wheel arch, right next to the rear wheel.
Where Is The Fuel Pump Filter Located?
There typically isn’t a separate fuel pump filter. Most vehicles have a single fuel filter located on the fuel line or near the fuel tank. The fuel pump itself may have a strainer or screen, but it’s not a replaceable filter.
How Many Fuel Pumps Does A Td5 Have?
The Land Rover TD5 engine technically has one in-tank fuel pump unit, but it houses both a low-pressure and a high-pressure pump within it.
Where Is Petrol Fuel Filter Located?
The petrol fuel filter is typically found somewhere between your car’s engine and fuel tank. It might be inside the tank itself or along the fuel line underneath the vehicle.
Land Rover Td5 Fuel Filter Housing
The Land Rover TD5 fuel filter housing is a vital part of the engine’s fuel system. It houses the fuel filter, which removes contaminants from the fuel, and a non-return valve that maintains fuel pressure. A malfunctioning housing can lead to starting issues, rough idling and reduced power.
Td5 Fuel Filter Housing Replacement
Replacing a TD5 Fuel Filter Housing requires some mechanical know-how. Here’s a basic overview:
- Locate the housing: It’s usually near the rear wheel arch.
- Gather tools: Spanners, wrenches, and possibly a fuel line disconnect tool.
- Disconnect battery: Safety first!
- Drain fuel pressure: Consult a guide for specific steps.
- Disconnect fuel lines: Note their positions for reassembly.
- Unbolt the housing: Might require penetrating fluid for seized bolts.
- Replace housing and filter: Ensure proper fit and tight connections.
- Reassemble lines and bleed air: Follow a proper guide to avoid air in the system.
- Reconnect battery and start the engine: Check for leaks and proper function.
What Are Common Faults With Td5?
Here are some common faults with Td5:
- Cracked Cylinder Head: Cracks around the injector seats can allow coolant to leak into the engine oil or exhaust gas into the cooling system.
- Leaking Fuel Injector Loom: Oil leaks from the engine can damage the wiring harness.
- Dual-Mass Flywheel Failure: Over time, the dual-mass flywheel can wear out and cause vibration and noise.
- Blocked Fuel Filter Housing: A clogged filter restricts fuel flow to the engine.
What Are The Symptoms Of A Td5 Fuel Pump?
A failing TD5 fuel pump can cause rough idling, starting issues, power loss, and even engine stalling. Listen for a constantly whining pump for another clue.
What Does A Fuel Filter Housing Do?
The fuel filter housing acts like a secure apartment for the fuel filter, keeping it clean and allowing it to trap contaminants before they reach your engine.
What Are The Symptoms Of A Bad Fuel Filter Housing?
- Rough Idling: Engine shakes noticeably at idle due to inconsistent fuel flow.
- Power Loss: Reduced acceleration and overall sluggishness from lack of proper fuel delivery.
- Engine Stalling: Vehicle sputters and dies completely if the filter housing is severely clogged.
- Hard Starting: Engine cranks for longer than usual due to difficulty priming the fuel system.
- Check Engine Light: May illuminate depending on your vehicle’s computer detecting fuel system issues.
Does Fuel Filter Improve Performance?
A clean fuel filter itself won’t necessarily boost performance, but replacing a clogged one can restore lost power and smooth out engine operation.
Td5 Non Return Valve Symptoms
A faulty TD5 non-return valve can cause hard starting, rough idling, and power loss. Engine struggles to maintain fuel pressure, leading to these grumpy symptoms.
Defender Td5 Fuel Filter Housing
The Land Rover Defender Td5’s fuel filter housing is a vital part of the engine’s fuel system. It houses the fuel filter, which cleans fuel before it reaches the engine, and a non-return valve that maintains fuel pressure. A malfunctioning housing can lead to starting issues, rough idling, and power loss.
Discovery Td5 Fuel Filter Housing
The Land Rover Discovery Td5’s fuel filter housing is a vital part of the engine’s fuel system. It houses the fuel filter, which cleans fuel, and a non-return valve that maintains fuel pressure. A faulty housing can lead to performance issues.
Td5 Fuel Non Return Valve Location
The TD5 fuel non-return valve is located inside the fuel filter housing, typically near the rear wheel arch. It’s not a separate component you’ll see externally.
Land Rover Td5 Fuel Filter Housing
The Land Rover TD5 fuel filter housing is a vital part of the engine’s fuel system located near the rear wheel. It houses the fuel filter that cleans fuel and a non-return valve that maintains fuel pressure. A clogged filter or faulty housing can lead to performance issues.
Diesel Engine Performance Troubleshooting
- Visual Inspection: Look for leaks, loose connections, or anything visibly out of place around the engine and fuel system.
- Check Fluids: Ensure proper levels and condition of engine oil, coolant, and fuel. Dirty or low fluids can impact performance.
- Basic Tests: Some simple checks like replacing the air filter or cleaning the fuel filter can resolve basic performance issues.
- Scan Codes: Modern diesel engines often have diagnostic codes that can pinpoint specific problems. Consider using an OBD-II scanner for relevant fault codes.
- Specialty Tools: For deeper diagnosis, tools like compression testers or fuel pressure gauges might be needed. Consulting a qualified mechanic is recommended for these procedures.
Td5 Fuel Filter Housing Non Return Valve
The TD5’s non-return valve in the fuel filter housing stops fuel from flowing back to the tank, keeping pressure for smooth starts and engine performance. A faulty valve can cause starting issues and power loss.
Defender Td5 Fuel Filter Housing Valves
Two key valves reside in your Defender’s TD5 fuel filter housing: a non-return valve maintaining fuel pressure and an air bleed valve for system purging during maintenance.
Gore Td5 Fuel Filter Housing
The Gore TD5 Fuel Filter Housing is a popular aftermarket upgrade for Land Rover TD5 engines. Made from a stronger material and featuring a redesigned filter element, it addresses common issues found with the stock housing.
Td5 Fuel Filter Location
In Land Rover TD5 models, the fuel filter housing is typically tucked away in the rear wheel arch, near the right rear wheel.
Td5 Defender Fuel Filter Housing
A crucial part of your Land Rover TD5’s fuel system, the fuel filter housing cleans fuel and maintains pressure. Watch out for a clogged filter or leaks, which can cause performance problems.
Td5 Fuel System Maintenance
- Change Fuel Filter Regularly: A clogged filter restricts fuel flow, hurting performance. Stick to the manufacturer’s recommended service intervals.
- Inspect Fuel Lines: Cracked or loose lines can cause leaks and air intake, leading to poor engine performance.
- Clean Water Sensor (if equipped): A faulty sensor won’t warn you about water contamination, harming the engine.
- Check for Leaks: Fuel leaks are not only a fire hazard but can also cause performance issues. Look for drips around the housing and fuel lines.
- Consider Fuel System Cleaning: Over time, deposits can build up in the fuel system. Additives or professional cleaning can restore performance.
Read Also Is E10 Gas The Same As 87 | Understanding Fuel Types & Octane Ratings
Land Rover Defender Fuel Filter Problems
- Clogged Filter: Restricted fuel flow leads to reduced power, rough idling, and potential stalling.
- Leaking Housing: Air entering the system due to cracks or corrosion mimics a faulty non-return valve, causing starting issues and power loss.
- Faulty Non-Return Valve: Worn valve loses ability to maintain pressure, resulting in difficulty starting, rough running, and lack of power.
- Water in Fuel: Defender (TD5) water sensor (if equipped) might illuminate warning light. Excess water can damage the engine.
- Dirty Fuel: Contaminated fuel can clog the filter faster and potentially damage injectors.
Land Rover Discovery Fuel Filter Replacement
- Raise the Vehicle: Safely lift your Discovery using jacks and jack stands to access the fuel filter housing underneath.
- Locate the Housing: The housing is typically near the rear wheel arch. Refer to a repair guide for exact placement on your Discovery model.
- Disconnect and Drain: Disconnect fuel lines following proper safety precautions. Drain any residual fuel using a collection container.
- Remove and Replace: Unscrew the housing and remove the old filter. Install the new filter and reassemble the housing, tightening securely.
- Reconnect and Bleed: Reconnect the fuel lines and tighten clamps. Use the air bleed screw (if present) to purge air from the system.
- Lower and Start: Carefully lower your Discovery and attempt to start the engine. Monitor for leaks and proper performance.
Does A Tdv8 Have A Fuel Filter?
Land Rover TDV8 engines absolutely have a fuel filter. It plays a vital role in keeping the engine running smoothly by removing impurities from the fuel.
How Do I Know If My Td5 Is Leaking Gas?
A telltale sign of a gas leak in your TD5 is a strong diesel odor. Check for visible dampness or drips around the rear wheel arch, where the fuel filter housing sits.
Look for a wet, black residue as diesel fuel dries. If unsure, have a mechanic inspect for leaks and ensure safe operation.
Should A Td5 Start And Run Clean?
Absolutely! A properly maintained TD5 Land Rover should start smoothly and run clean, with no excessive smoke or rough idling.
FAQs
What is a filter housing in a car?
A filter housing in a car is a container that holds a filter and channels fluid (like oil or fuel) through it. It protects the filter and ensures efficient flow of clean fluid.
What is a fuel filter housing made from?
Fuel filter housings are typically crafted from either high-grade, corrosion-resistant aluminum or durable engineering plastics.
What is the oil filter housing?
The oil filter housing is a container that screws onto the engine block and securely holds the oil filter. It channels oil through the filter to remove contaminants before returning clean oil to the engine.
What is the objective of the fuel filter?
The fuel filter acts as a security guard for your engine. It traps dirt, rust, and other contaminants in the fuel before they can reach the engine’s delicate injectors, keeping your engine running smoothly.
Conclusion
We’ve explored the common gremlins that can plague your TD5’s fuel filter housing. Remember, early detection and addressing TD5 fuel filter housing problems can prevent headaches down the road. By recognizing the symptoms and understanding the components involved, you’re well on your way to keeping your Land Rover running like a champ.
